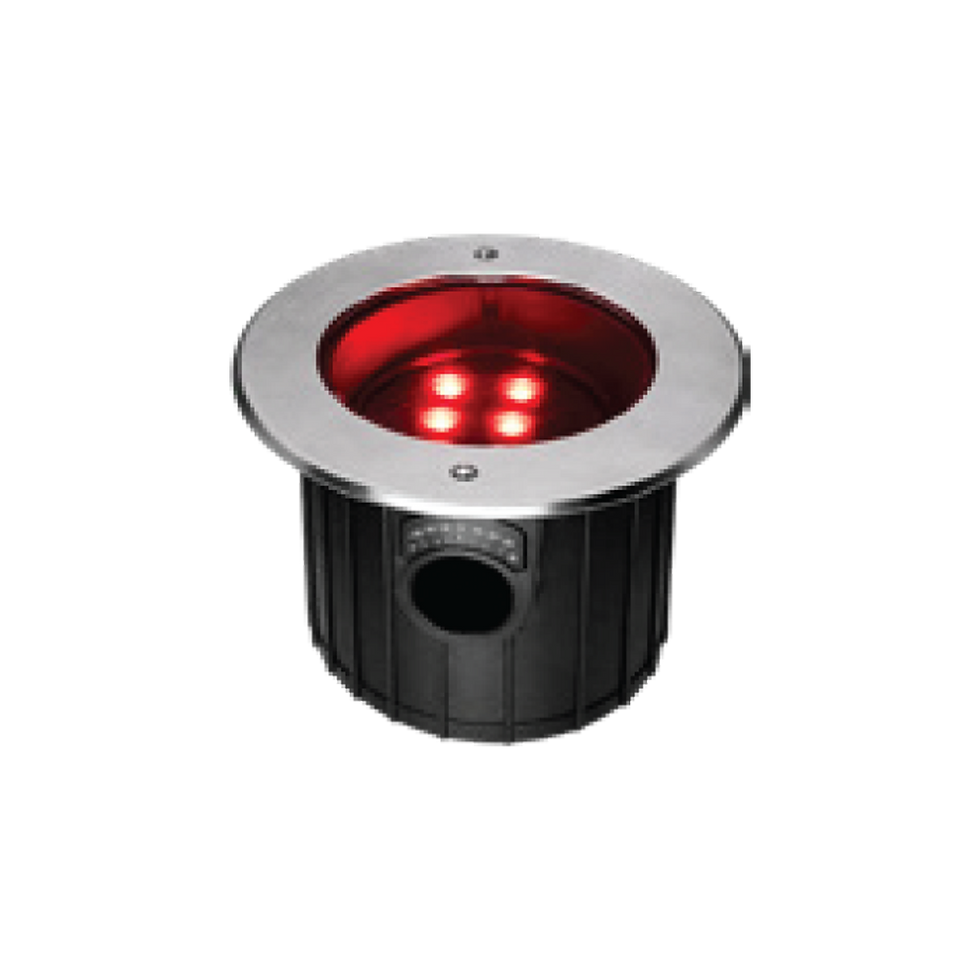

Glacial RGBW

Shape: Round
Mounting Type: Inground
LED Type: LED SMD Module
Power Options: 12W | 18W | 25W | 35W
CCT(K) Options: RGBW
Luminous Efficacy: 42-51lm/W
LED Wavelength:
R=620-630nm
G=520-530nm
B=460-470nm
W=6000K
IK: 10
IP: 67
Operating Temperature: 20° to 50°C
Life Span: 50,000hrs
Housing: Die cast aluminium dark grey powder coated
Front Cover: Hard chrome-plated stainless steel SUS 316L#
Diffuser: Tempered glass . T=8-10mm
Lens: PMMA
Beam Angles:
15° | 20° | 30° | 45° - 12W
15° | 20° | 30° | 45° - 18W
8° | 10° | 20° | 25° | 50° | 10°x60°- 25W
10° | 20° | 25° | 50° | 10°x60°- 35W
Gasket: Silicon rubber molding shaped seal
Glass Pressure Capacity:
12W : Full area = 2621Kgs
18W: Full area = 29401Kgs
25W: Full area = 5513Kgs
35W: Full area = 5356Kgs
Sleeve Material: PC/ABS alloys
Cable Gland:
12W / 18W : IP68 PG-9 PA66
25W / 35W: IP68 PG-13.5 PA66
Power Cable(Outside of Luminaire):
24VDC: H07RN-F 2x1.0 + 3x0.5mm2
Cable length = 0.5m
