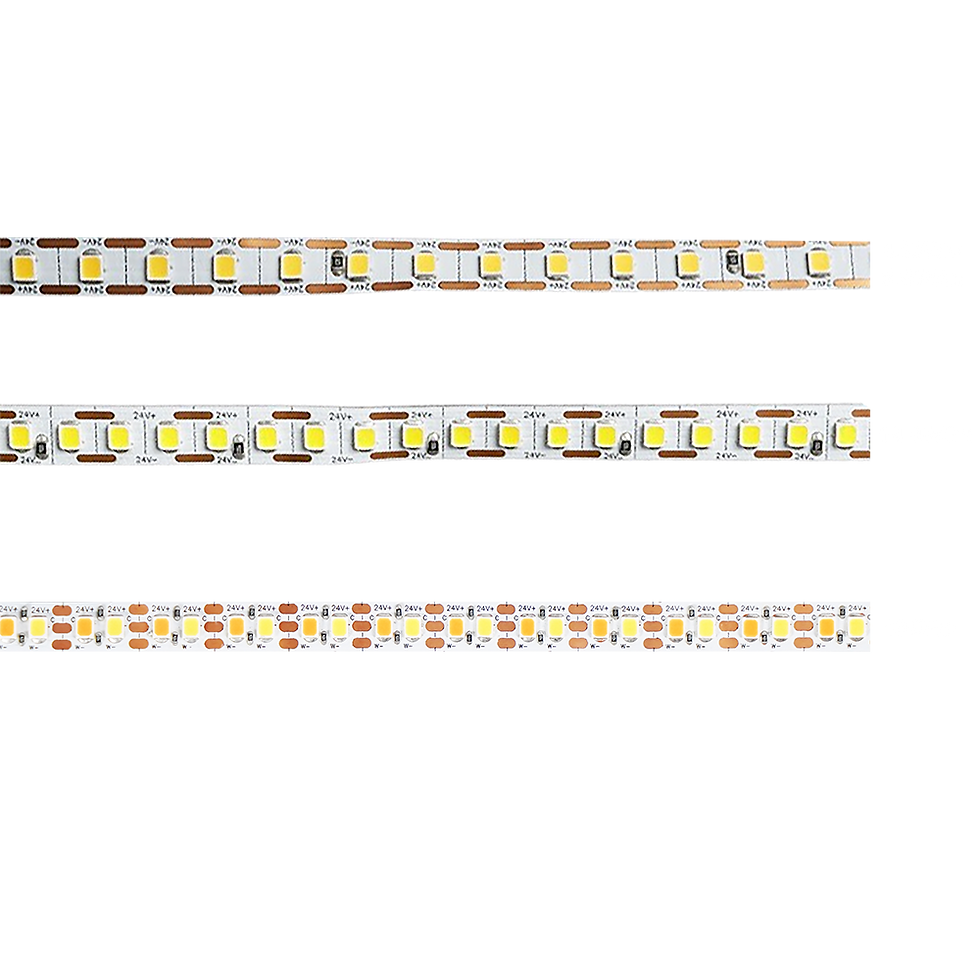

CF Strip 8mm width SMD Series


- Suitable for indoor use only.

- This series comprises of four models

   a) 4.8W/m - 24VDC - 8mm wide - 64 Single Bin LEDs/meter.

   b) 7.2W/m - 24VDC - 8mm wide - 80 Single Bin LEDs/meter.

   c) 9.6W/m - 24VDC - 8mm wide - 128 Single Bin LEDs/meter.

   d) 14.4W/m - 24VDC - 8mm wide - 160 Single Bin LEDs/meter.

- Each model having constant current IC based circuit thus ensuring unmatched spot free and

  consistent luminous flux throughout the span for superior lighting effects.

- 24VDC output based system for optimum flicker less operation and performance.

- Luminous efficacy 135Lumens/watt for CCT 4000K.

- Choice of eight monochrome white tones i.e. 1900K, 2300K, 2700K, 3000K, 3500K, 4000K, 5000K

  and 6000K.

- White color tones having excellent color rendering index CRI>85(Ra).

- Color consistency value of SDCM<3 for 1900K, 2300K, 2700k, 3000K, 3500K, 4000K and

  SDCM<5 for 5000K and 6000K.

- 120° beam angle for optimum light distribution.

- IP20 rating making it suitable for standard indoor applications.

- Lifespan up to 50,000 hours (L80B10).

- Ambient indoor operating temperature range from -25°C to +40°C.

- SMD Strip having FPC (flexible printed circuit) with 3oz layered Copper foil for performance,

  durability and swift heat dissipation.

- High quality branded self-adhesive tape for firm adhesion to mounting surface of Aluminium


- Available in standard pack of 5 meters reel length
